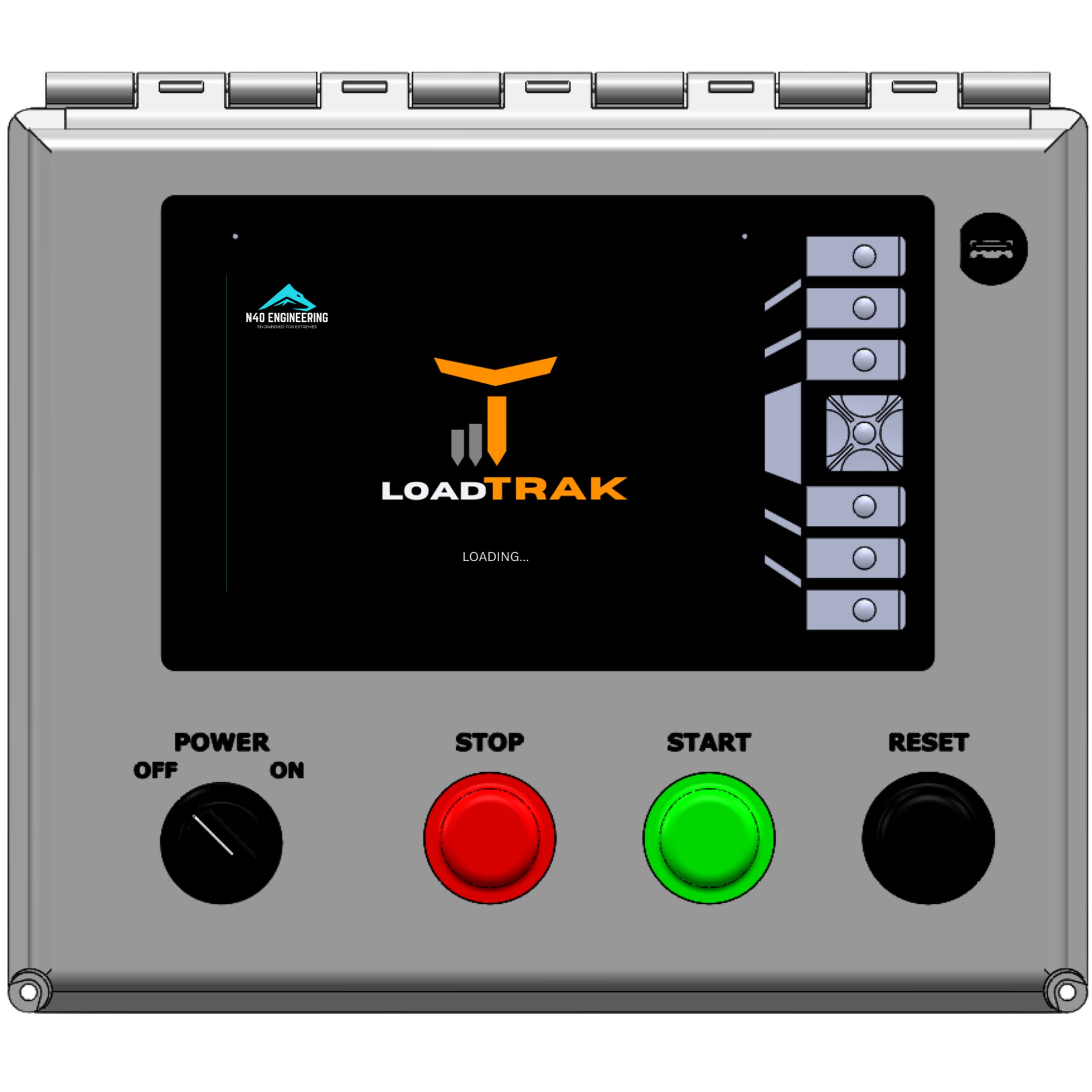

RETROFIT READY CONTROL PANEL FOR BULK MPUs

Introducing the LoadTrak system. A retrofit ready control system engineered for reliability, simplicity, and accuracy. Designed especially for surface and underground MPUs

Technical Specifications:

  • Open loop controls allows for simple, inexpensive retro-fit on most MPUs

  • System Voltage:

    • Nominal: 12/24 VDC

  • Environmental Rating:

    • Temperature: -35°C - 65°C (-31°F - 140°F)

    • Ambient Air Relative Humidity: 90%

    • Ingress: IP67

  • Input channels:

    • 4x 4-20 mA analog channels

    • 3-6x discrete channels

    • 8x frequency channels

    • 5-8x 0-10V analog channels

  • Output channels:

    • 27x discrete channels

    • 16x PWM channels

  • Communications:

    • 2x Ethernet

    • 2x USB

    • 4x CAN

    • 1x RS232

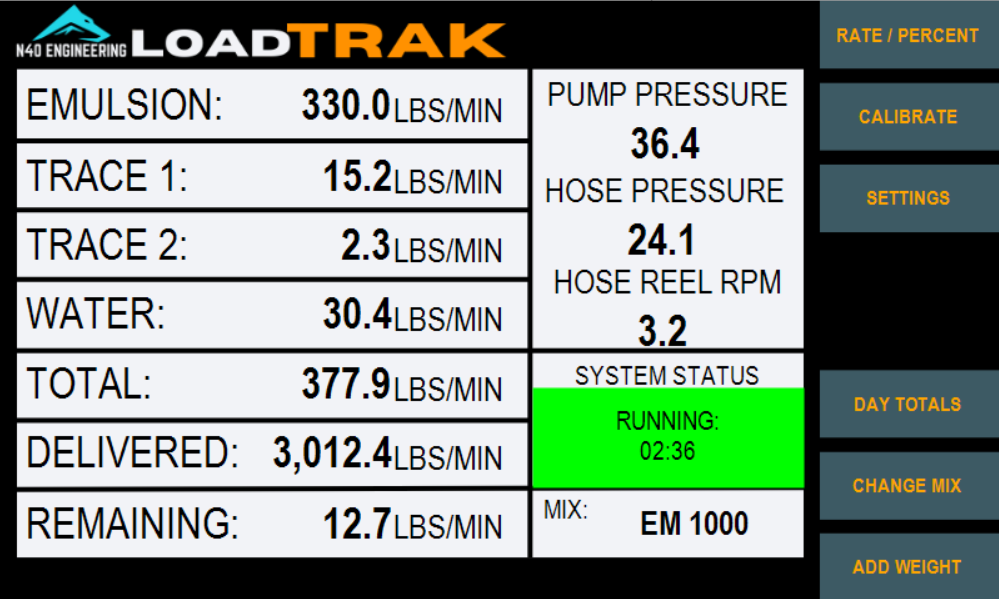

Customizable User Interface

Our customizable user interface (UI) matches the software to the truck for easy implementation and reliable performance.

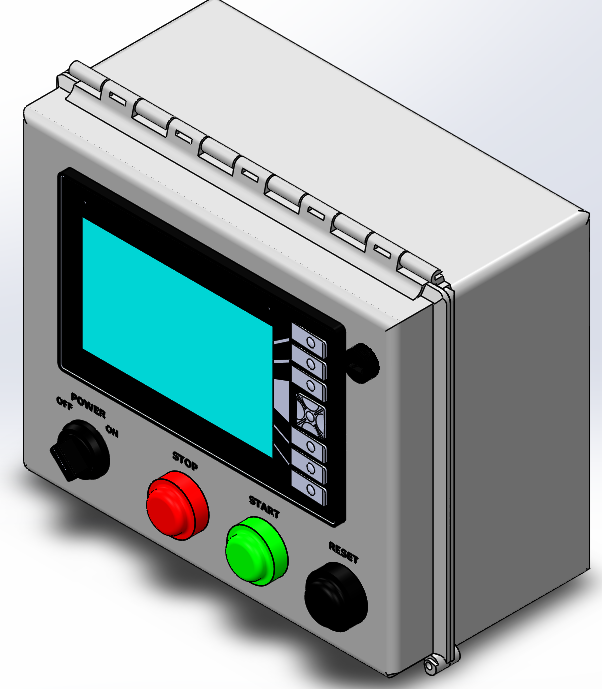

  • NEMA 4X rated electrical enclosures

  • Plastic shell Deutsch electrical connectors for main cabling

  • Sealed, panel mount interfaces to maintain durability

  • Booted switches to prevent ingress

Robust Design

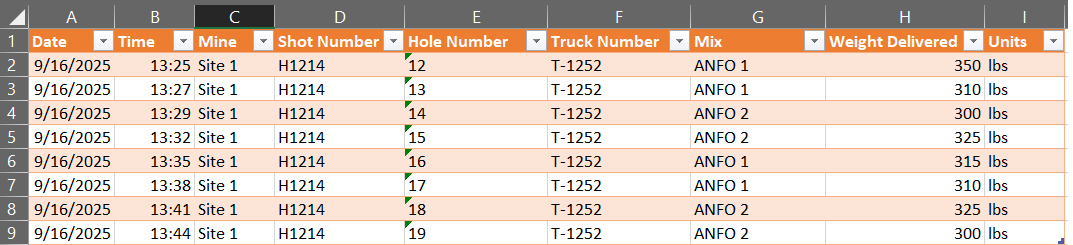

Data Tracking & Export

Thorough data tracking accurately reports how much product goes in each hole and is available as an exportable csv file via USB

Let’s work together

Want to see if the LoadTRAK system can help your operations? Reach out and schedule your free equipment review.
